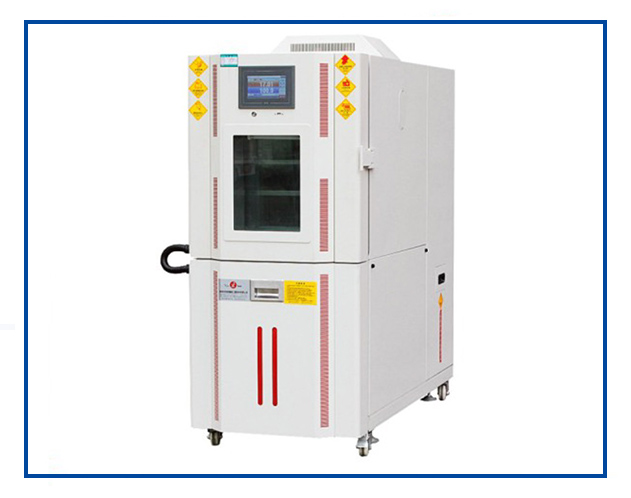

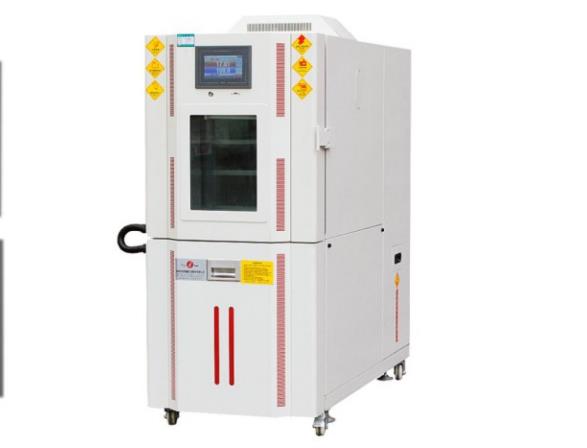

<恒溫恒濕試驗箱
可編程快速溫度變化試驗箱，又稱環(huán)境試驗箱，試驗材料耐熱、耐寒、耐干、耐濕。適用于電子、電器、通訊、儀器儀表、汽車、塑料制品、金屬、食品、化工、建材、醫(yī)療、航空航天等產品。
產品參數：
| 型號Modal | FSG-D-80 | FSG-D-150 | FSG-D-225 | FSG-D-408 | FSG-D-800 | FSG-D-1000 |
| 內部尺寸WxHxD（cm)intemalDimensions | 40x50x40 | 50x60x50 | 60x75x50 | 80x85x60 | 100x100x80 | 100x100x100 |
| 外部尺寸W*H*D(cm)ExtemalDimensions | 62x158x146 | 72x168x155 | 82x183x155 | 100x193x165 | 122x208x185 | 122x208x205 |
| 內箱體積inner chamber volume | 80L/升 | 150L/升 | 225L/升 | 408L/升 | 800L/升 | 1000L/升 |
| 溫度范圍Temperature Range | -70℃-+150℃1180)(A:-20℃ B:-40℃ C:-60℃ D:-70℃ |
| 濕度范圍Humidity Range | 20%-98%R.H.(10%-98%R.H/5%-98%R.H為特熱選用條件R.H is a speciai optional condition ) |
| 溫濕度解析精度/均勻度 Analvtie Accuracy/evenness degree ofTemperatue and Humidity | ±0.1℃:+0.1%8.H.20℃:*3.0%AH |
| 升溫/降溫時間Temperafure Rising/Falling Time | 平均4℃/分鐘:平約1.2℃分鐘Approaimately4.0℃/minute: aporoximately1.2℃/minute |
| 內外部材質Inner and Outer Materials | 內箱為SU不情鋼鏡面板，外隨為鐵板高精密日本技術烤漆。The inside case for SU staintess steol mirror board. outside the box for iron planehigh orecision of jacanese technoloay finitn |
| 保溫材質Insulation Materia | 耐高溫高密度氯基甲酸乙酸泡沫絕緣體材料Resistan to high temperature, high density. formate chlorine, ethyt acetum foam insulation materiats |
| 冷卻系統(tǒng)Cooling System | 風、水冷式單/雙段壓縮機Air.watercooling'double segmentcompresso |
| 保護裝置Protection Devices | 無保險絲開關、壓縮機過載保納開關、高低壓冷卻液保護開關、過濕過溫保護開關、保險絲、故障報警系統(tǒng)Fuse-free switch. overloading arotection switch for comoressor. high and low voltage coolant orolectionswitch,over-humidity and over-temperature protection switch. fuses. failure waming system |
| 配件parts | 觀察窗。50mm測試孔，PL內部燈泡、隔斷板，干溫球炒網watching window.50mm testing hole. PL internal bulbs, partition plate, dry and wet baii gauze |
| 控制Scontrol panel | 德國西門于PLC或韓國TH-900CGerkanSiemens PLCorTH-900CKore8 |
| 壓縮機Compressor | 法國“泰康”牌Fran/s“Tecumseh” |
| 電源Power | 1Φ220VAC±10%50/60H&3Φ380VAC±10%50/60Hz |
