產品簡介ProductIntroduction

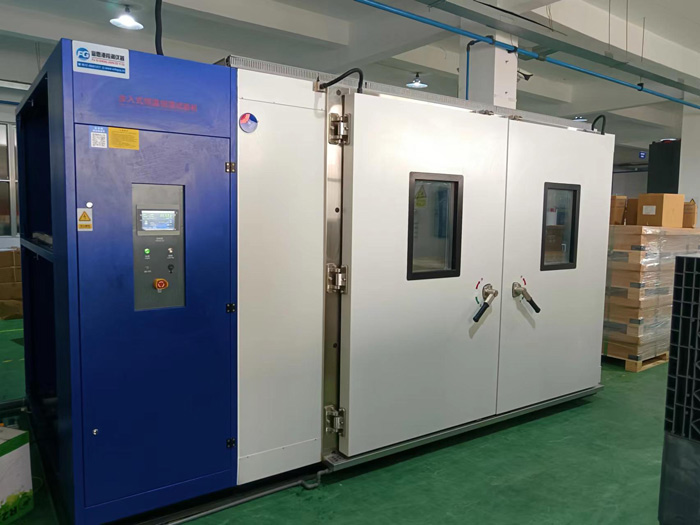

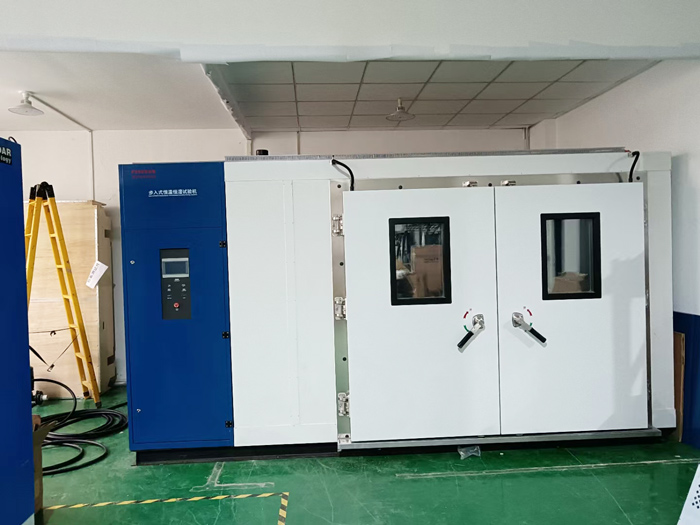

步入式高溫老化試驗室，又稱老化試驗室，是各種老化試驗中常用的設備之一，廣泛應用于電子、計算機、通信等領域。它由圍護結構、風管系統、控制系統、室內測試結構等組成。
Walk-In Hiah Temp Aaing Test Room.also known as Burn-in Room. is one ofthe common eauipment in all kinds of aaing tests. whichwidel used in electronic.computer.communication and anv other field. it is consist of containment structures. air duct system,control system Indoor test architecture and other components.
老化房特點
溫度控制準確、。獨特的風系統及電控系統設計，使室內溫度分布均勻，遠優于同類產品。房間溫度設置可能會在環境溫度到80度之間變化?？筛鶕?jù)客戶的特殊要求，開發更高溫度的產品。房間內幾個區域的溫度滾動顯示，以確保清晰準確的溫度監測。系統完善的保護功能，確保設備長時間安全平穩運行。外觀美觀，施工周期短。
Feature
Accurate and precise temperature control.The air system and electric control systemare uniquely designed to achieve even temperature distribution within the room which Is far superior to similar product.?The temperature setting of the room may vary from ambient temperature to 80 degree.Upon customer's special requirement,products with even higher temperature can bedeveloped.?The temperatures of several areas inside the room are rolling displayed in order to ensure clear and accurate monitoring of the temperature.?
The complete protective functions of the system can ensure safe and smooth operation of the device for a long time.? Nice appearance and Short construction period.
產品參數：
| 型號Model | FSG-J-H |
| 溫度范圍Temperature Range | RT~60℃或80℃ |
| 溫度穩定度Temperature stability | ±0.5℃ |
| 溫度分布均勻度 temperature distribution uniformity | ±2℃ |
| 升溫時間 Temperature Rising Time | 約3-5度/分鐘(可跟著客戶要求定制) |
| 內箱尺寸Inter Dimensions(Wxhxd)cm | 10立方15立方 20立方 30立方 50立方 100立方 |
| 外箱尺寸External Dimensions(Wxhxd)cm | 依客戶要求 Subject to customer's requirements |
| 箱門尺寸cm | 單門式:W800*H180門式:W160*H180 |
| 結構材質material | 組合式拆裝式步入式面板:彩鋼板噴涂 Combination-type disassembly and assembly walk-in panel:spraying painting of color steel plate |
| 保溫材質Insulation Materia | 硬質聚氨酯泡沫塑料和玻璃織物 Rigid PU foam and glass fabric |
| 加濕系統Humidification system | 表面蒸發、加濕器，配備缺水、斷電、過載保護 Surface evaporative,humidifier equipped with water-shortage, power-cut and overherat protection |
| 加熱系統Heating system | 耐熱不銹鋼加熱器Heat-eliminating stainiess steel heater |
| 保護裝置Protection Devices | 無保險絲斷路器、制冷劑高壓保護開關、過熱保護開關、燒水保護、煙感報警系統 No-fusebreaker, refrigerant high pressure protection switch, overheat protection switch, boil-bry protection and smoke detection alarming system |
| 電源Power | AC1220V+10%，50/60HZ;AC3C380±10%，50/60HZ |
| 標準配件Standard accessories | 玻璃窗，操作室內部照明 Glass window,interior light of operating room |
| 選擇配件Choose accessories | 電源，固定產品車Power supply，fixtured product cart |
| 符合標準Conform to the standard | GB、ISO、ASTM、UL、CEN… |
<
<
<
